Smart Detailmarker Mini
A compact three-line detail marker with automatic detail ID, detail name and one custom field.
Three items, clearly arranged

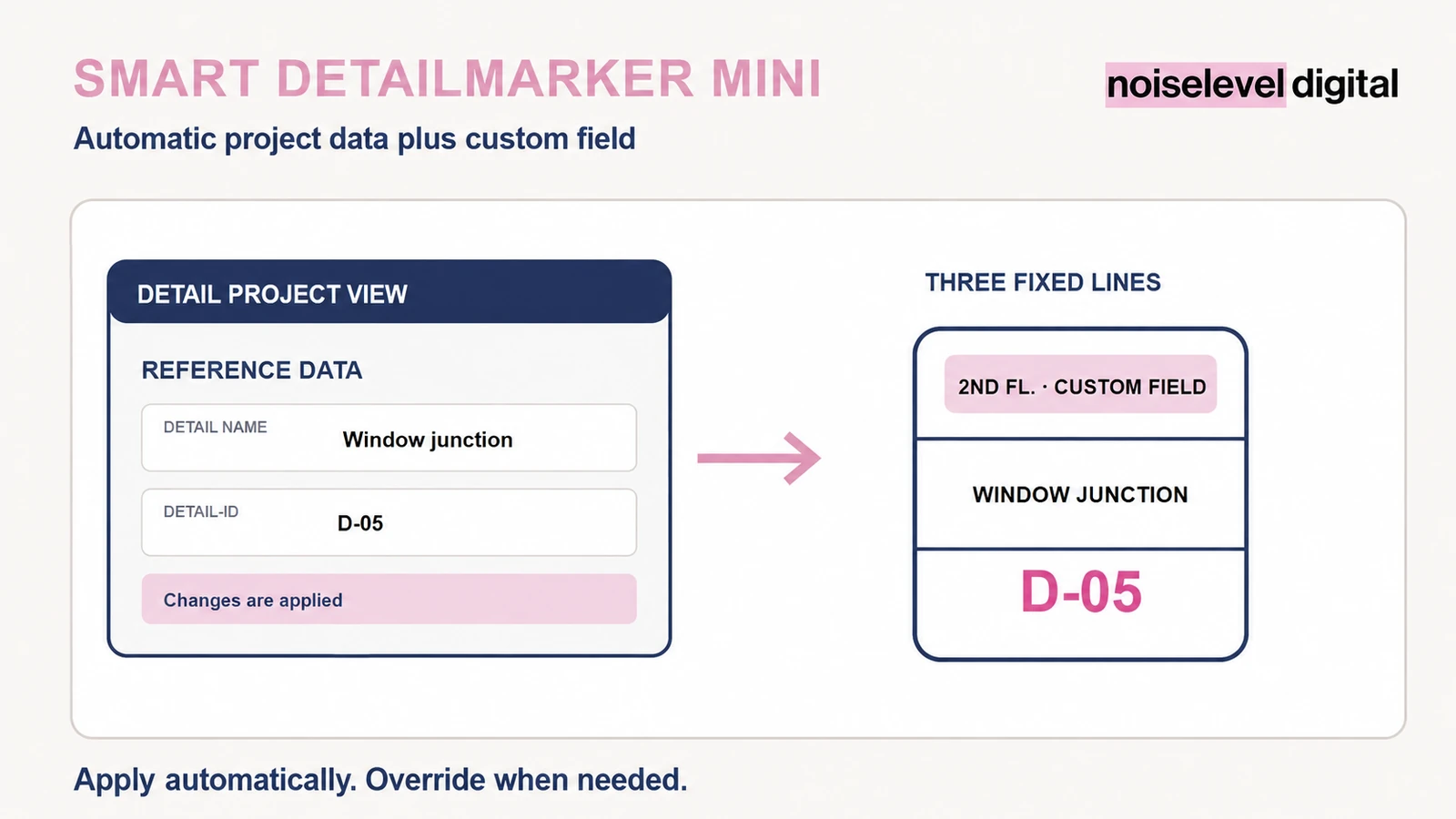

Smart Detailmarker Mini combines the key information in a detail reference within a compact marker. An additional field, detail name and detail ID are displayed on three separate lines. Automatic values remain linked to the project view and can be overridden for individual exceptions when needed.
Included

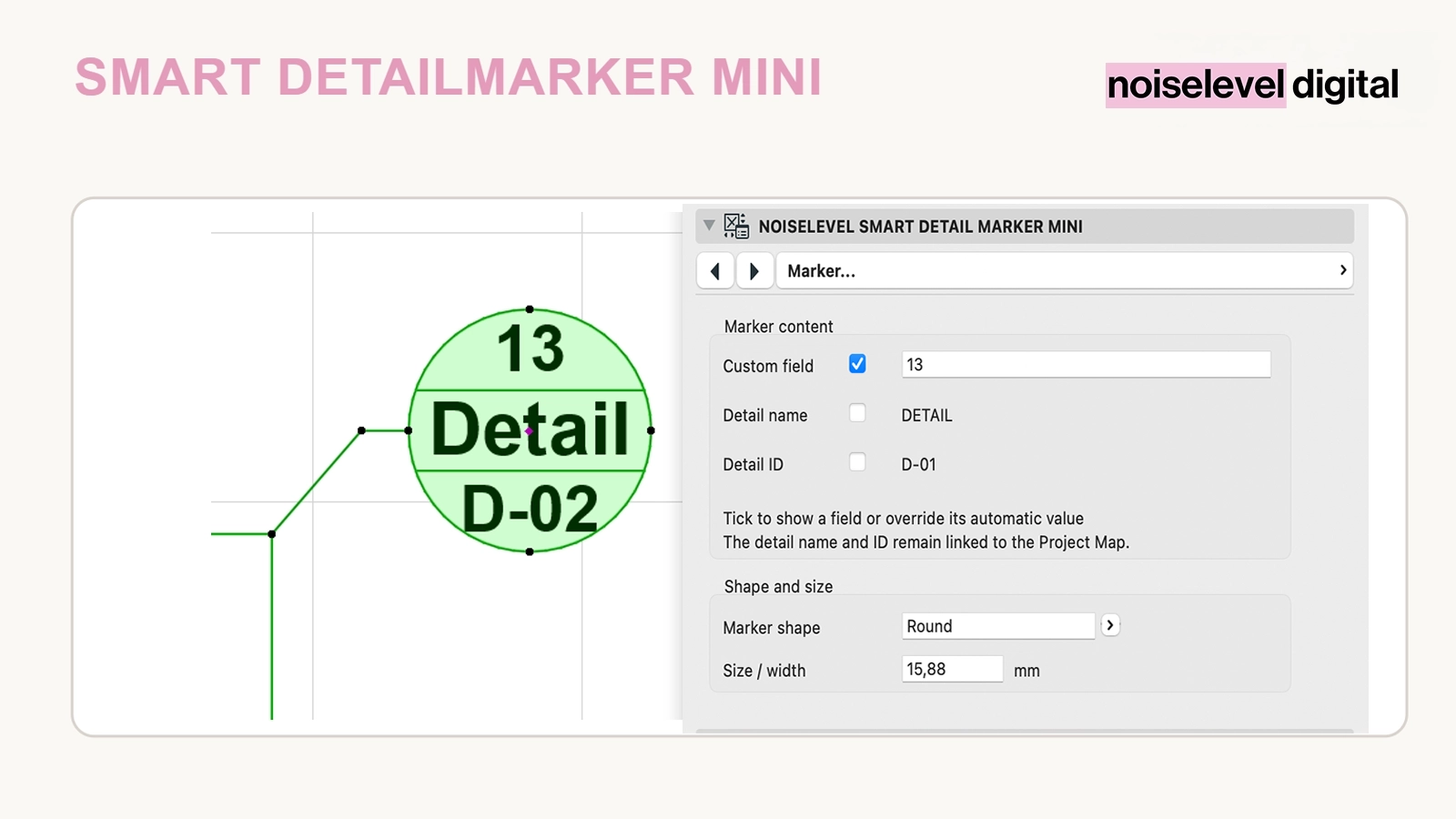

- automatic detail ID
- automatic detail name
- freely assignable additional field
- three clearly separated lines

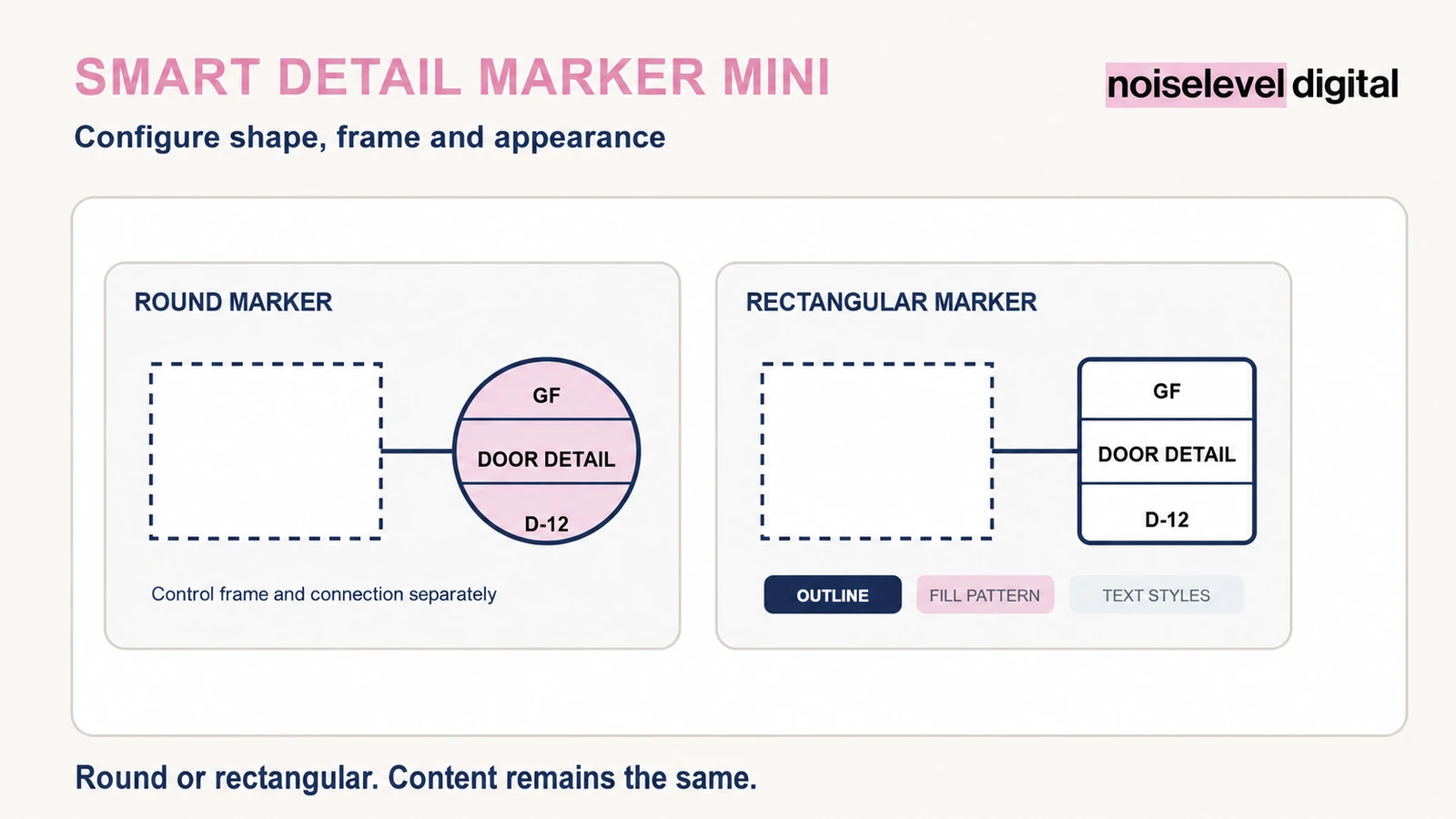

- round and square marker shapes
- adjustable size or width
- frame and connection settings
- GSM library part for Archicad® 27–28
Compact, yet adaptable

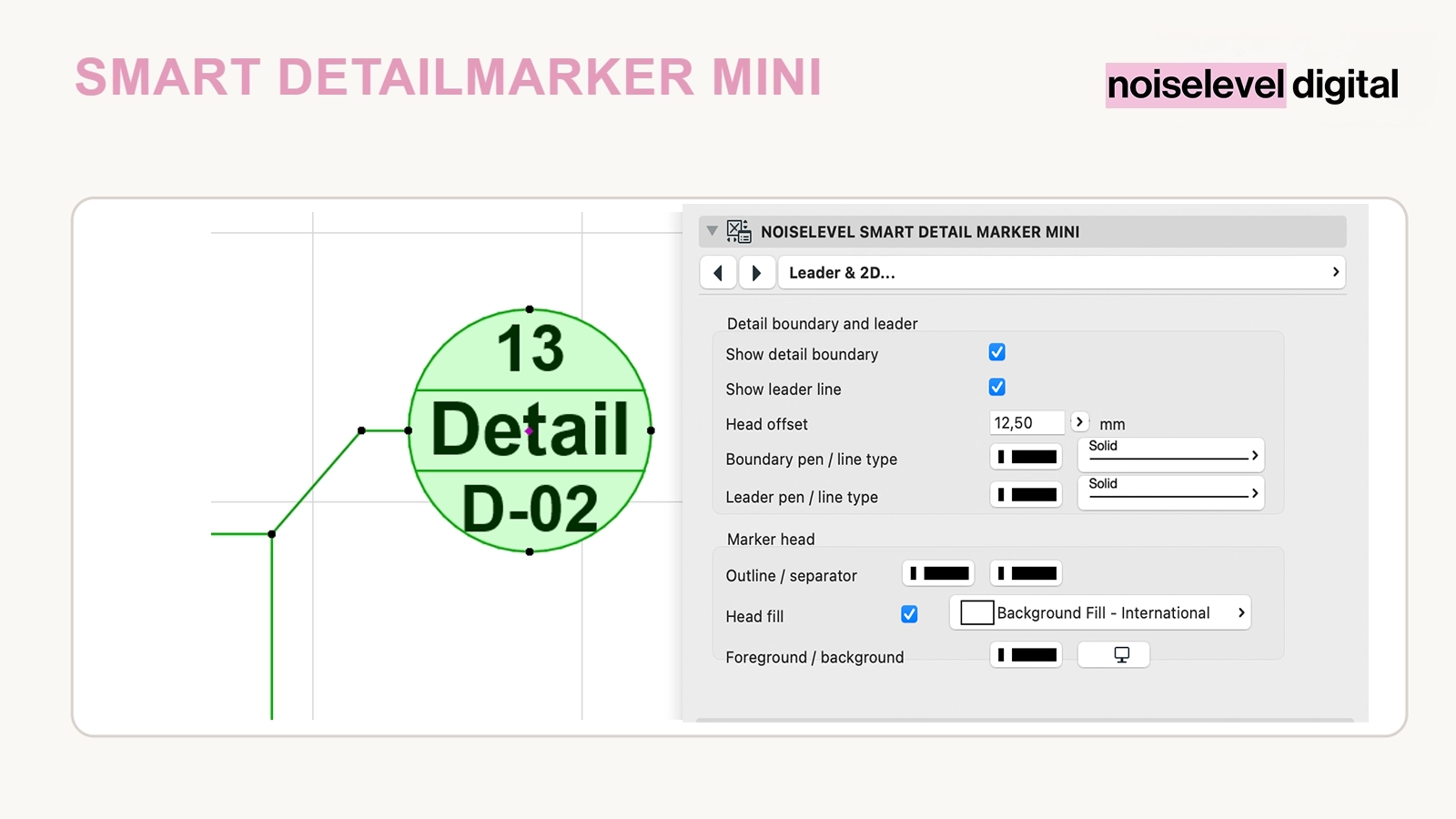

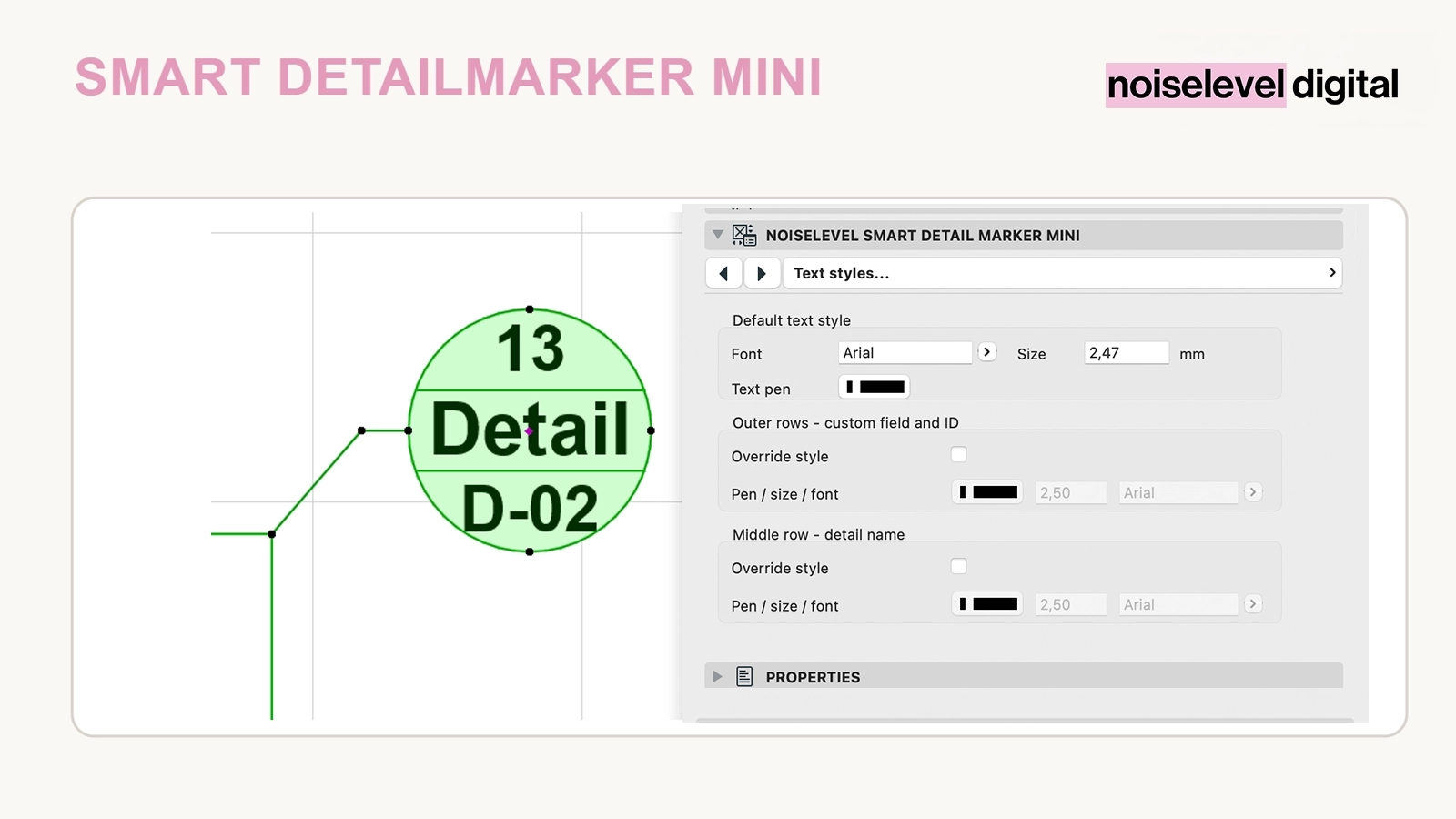

The additional field can be shown or hidden. The detail frame and connection line can be controlled separately; spacing, outline, separator lines and an optional marker-head fill are also adjustable. Separate text styles are available for the middle and outer lines.
How it helps in everyday office work
- no need to copy detail names and IDs manually
- additional office or element identifiers remain possible
- round and square displays use the same content
- consistent identification across different drawings
Who is this tool for?
For users who need a compact, easily understood detail marker with a fixed three-line structure and want to combine automatic project data with an additional custom field.
How it works
Unzip the download, load the GSM file through the Library Manager and link the marker to a detail project view using the Detail tool. Fill in the additional field, then choose the shape, size, frame and text styles.
Technical requirements
Automatic display requires a valid marker reference to a project view. The corresponding marker option must be enabled to connect to the detail frame. Project-specific pens, fonts and line types may need adjustment.
Important notes
The basic structure consists of three lines. To show or hide each line independently, format it freely and redistribute it automatically, use Smart Detailmarker Maxi.
