Archicad Tool Bundle
Five coordinated GSM library parts for labels, detail references and plan frames.
One system for recurring drawing tasks
Labels, detail references and plan frames are often built using separate objects with different settings. The Tool Bundle brings together five specialised GSM tools. It provides suitable components for complex element data, compact and flexible detail markers, and different sheet formats within a shared product system.
Included
- Smart Label Pro for up to ten combined content items
- Smart Detailmarker Mini with a fixed three-line structure
- Smart ID Detailmarker for structured reference IDs
- Smart Detailmarker Maxi with independently controlled lines
- Smart Plan Frame for standard DIN and custom formats
- shared product documentation
- five GSM library parts for Archicad® 27–28
Combine labels and detail markers

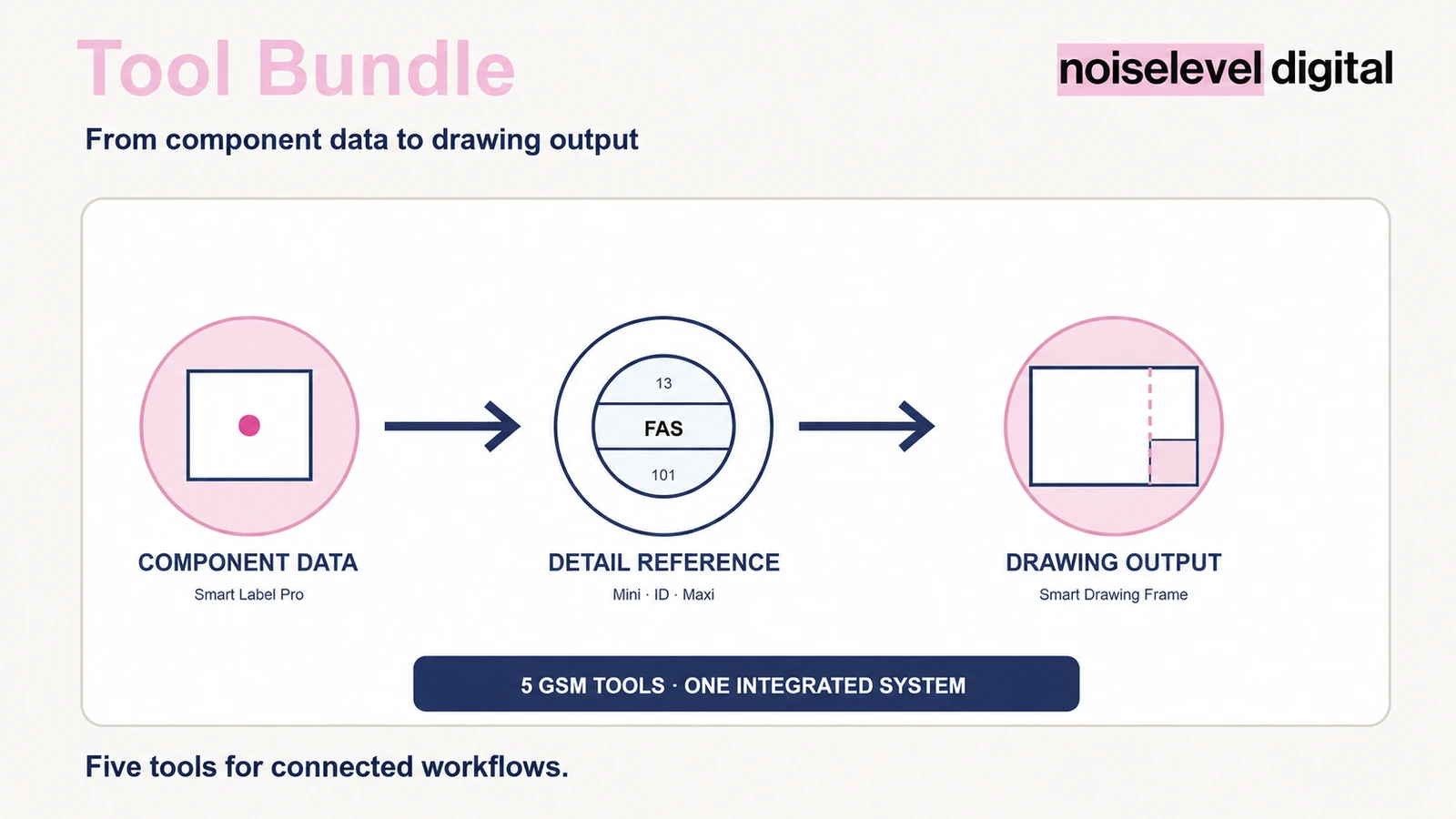

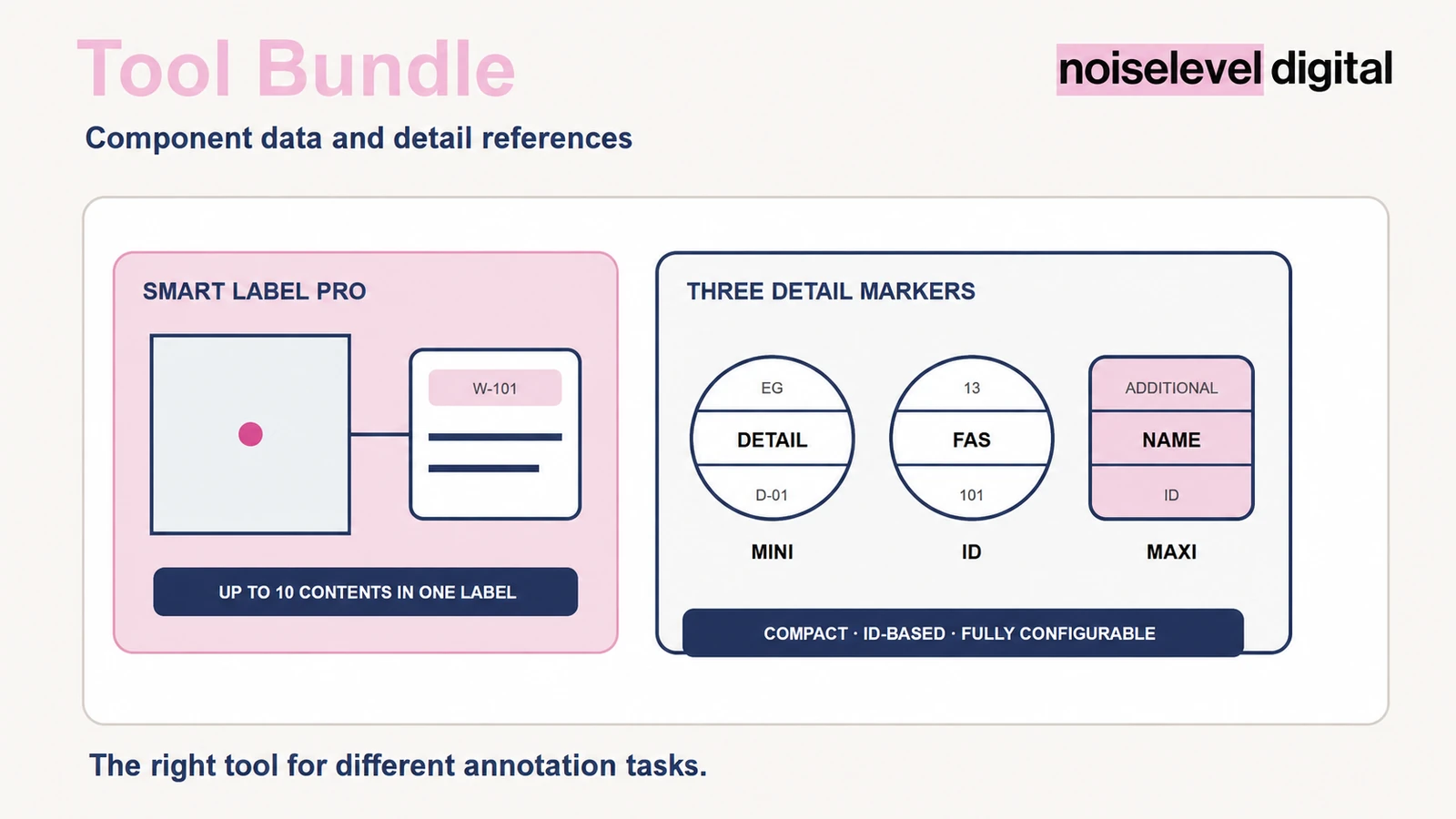

Smart Label Pro combines up to ten element data items and custom texts. The three detail markers cover different requirements: from a compact three-line structure and automatically organised reference IDs to the fully controllable Maxi version.
Manage sheet formats within the same package
Smart Plan Frame adds a parametric object for master layouts to the labelling tools. Standard DIN and custom formats, anchor points, frame margins, fold marks and a reserved title-block area are controlled within one frame object.
How it helps in everyday office work
- five tools for related tasks
- consistent design and understandable settings
- a choice of compact and more comprehensive detail markers
- combine element data and custom text in one label
- manage standard and custom formats with one plan frame
- a price advantage compared with buying the five paid products individually
For offices with recurring standards
The bundle is intended for individual users and planning offices within a single legal entity that want to use several tools and support labelling, detail identification and sheet output with coordinated library parts.
Installation and use
Unzip the package and load the included GSM files through the Library Manager. Use Smart Label Pro with the Label tool, the detail markers with the Detail tool, and Smart Plan Frame with the Object tool on a master layout. Test the tools in a project copy before using them in ongoing projects.
Technical requirements
The library parts were developed for Archicad® 27 and 28 and run within Archicad® on Windows and macOS. Properties, attributes, pens, fonts and line types may differ between project templates and may need adjustment.
Important notes
Features and limitations follow the information on the individual product pages. Smart Label Free is available free of charge independently of the bundle. The selected single-user, office or enterprise licence applies consistently to all five paid products included in the bundle.
